Yuyama
Automatic Drug Dispensing and Picking Machine
Drug Station
Wrong-medication picks are a constant risk. The Drug Station only opens the shutter for the correct medication’s location and size, so staff can’t grab the wrong tray even by accident.You can’t prove a pick was correct after the fact. Every pick is weighed and fraction-counted through image processing, giving you a data trail for each dispense instead of relying on memory.
Inexperienced staff slow down picking. Because the right tray comes to the operator automatically, picking speed and accuracy stay consistent whether the person doing it is a pharmacist or not.
A power outage shouldn’t stop your pharmacy. The Drug Station includes a laptop and a battery-powered journal printer, so staff can keep picking manually from a printed tray list until power comes back.
Overview

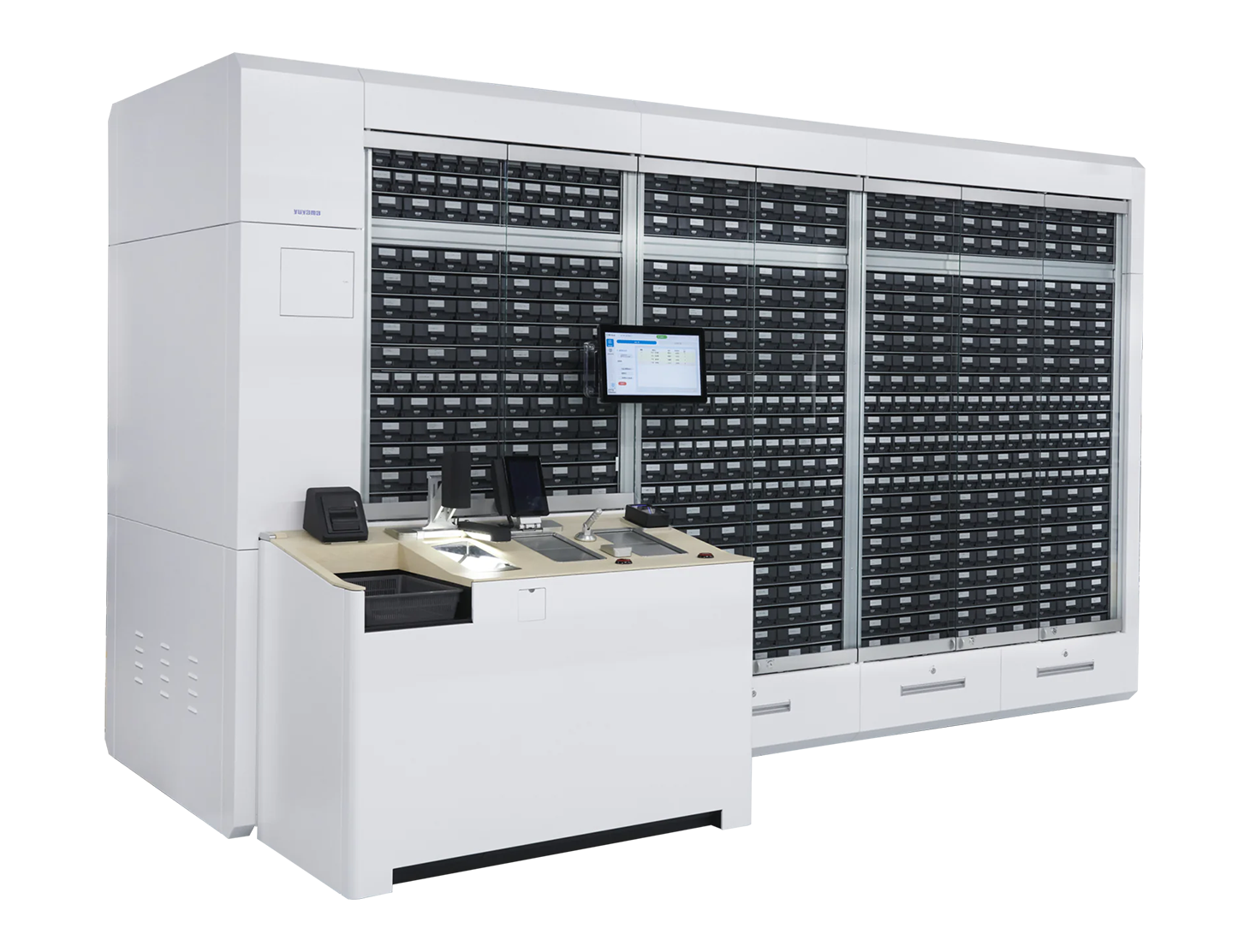

Automatic Drug Dispensing and Picking Machine Drug Station

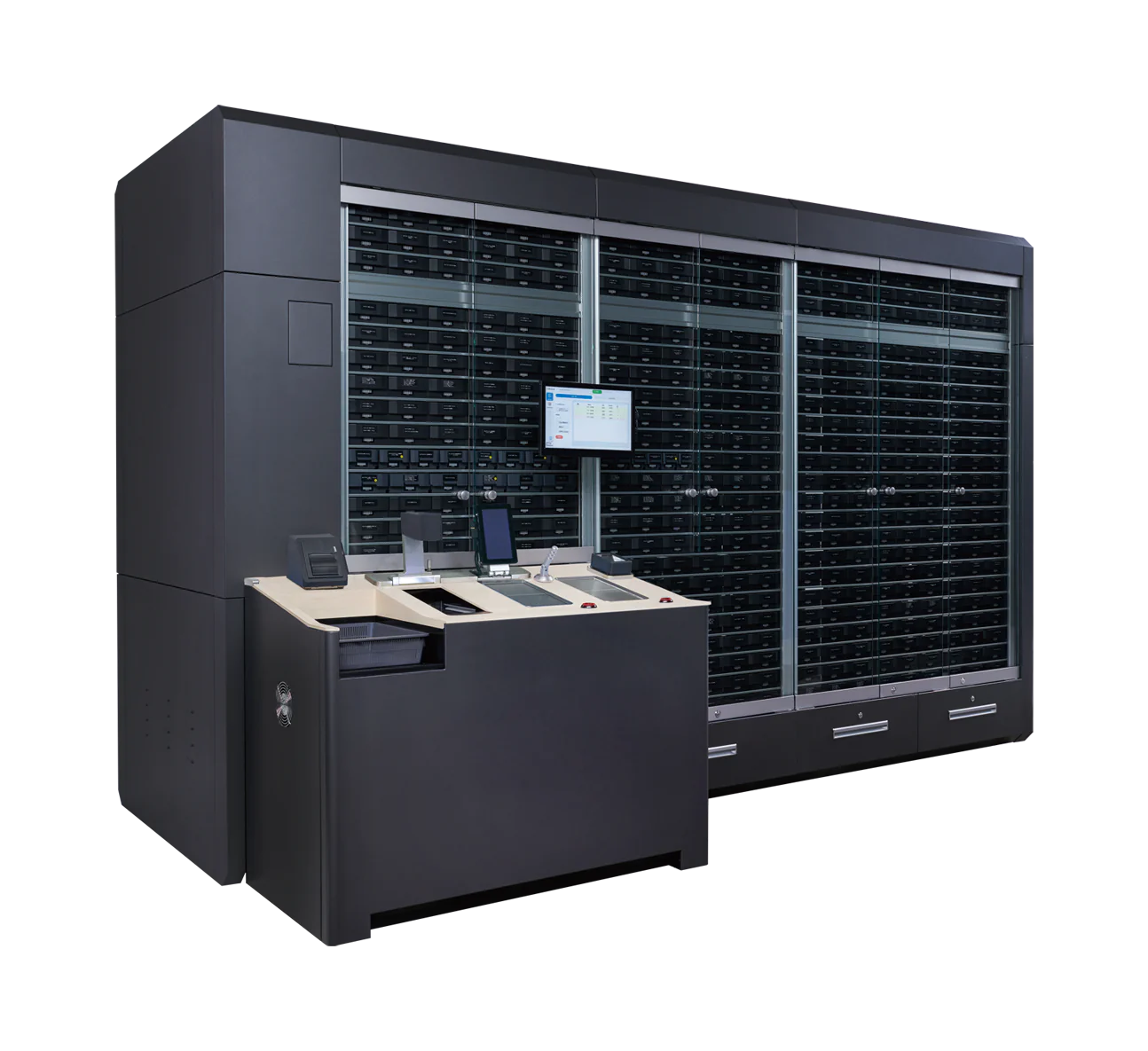

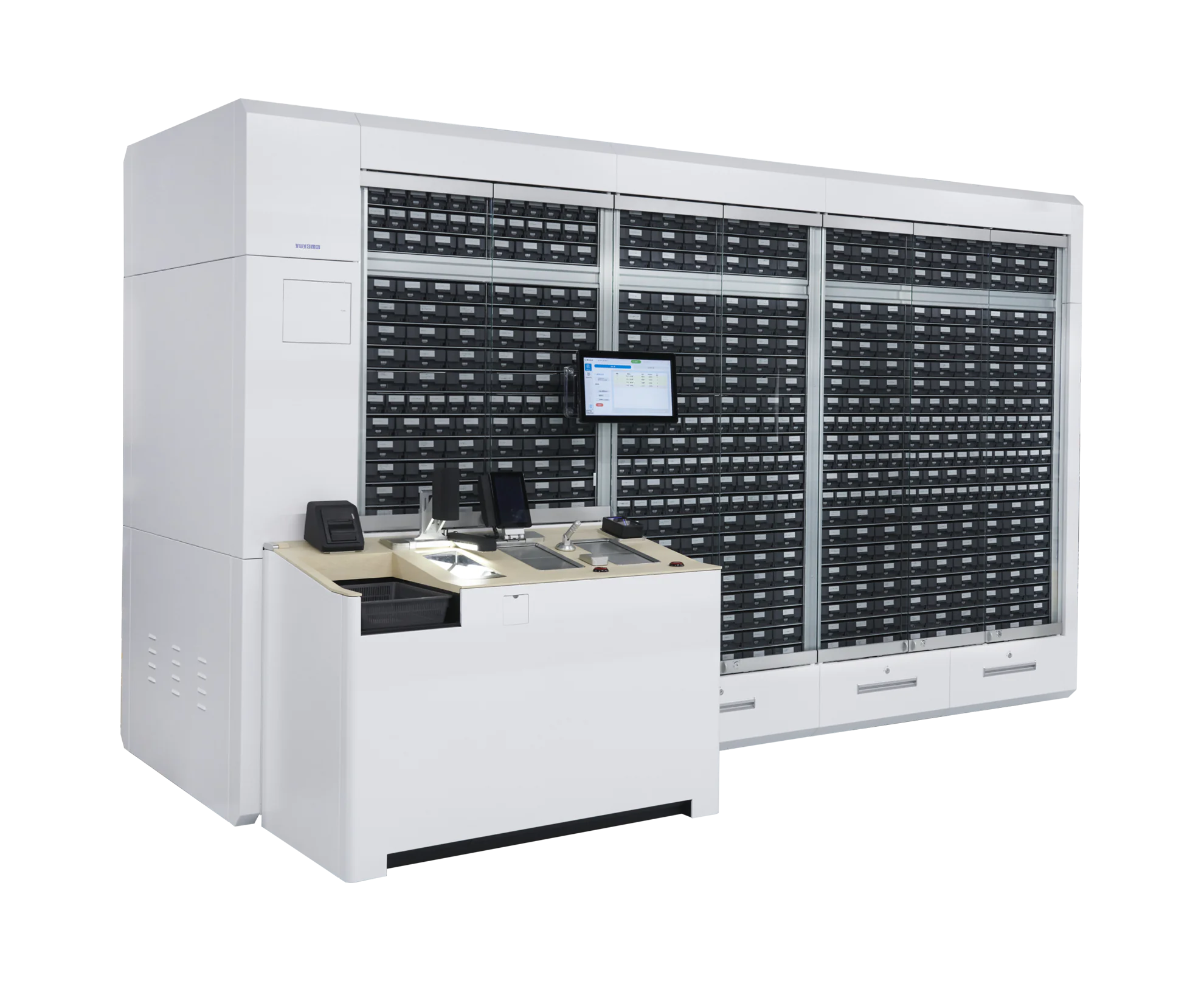

The Yuyama Drug Station is an automatic drug dispensing and picking machine. Once an order comes in, the right medication tray arrives in front of the operator in as fast as 12 seconds — no searching the shelves, no walking the aisles. Picking is accurate enough that even non-pharmacists or inexperienced staff can do it correctly on the first try. Source: yuyama.co.jp/en/product/drug-station (YUYAMA MANUFACTURING CO., LTD.)
Key Features

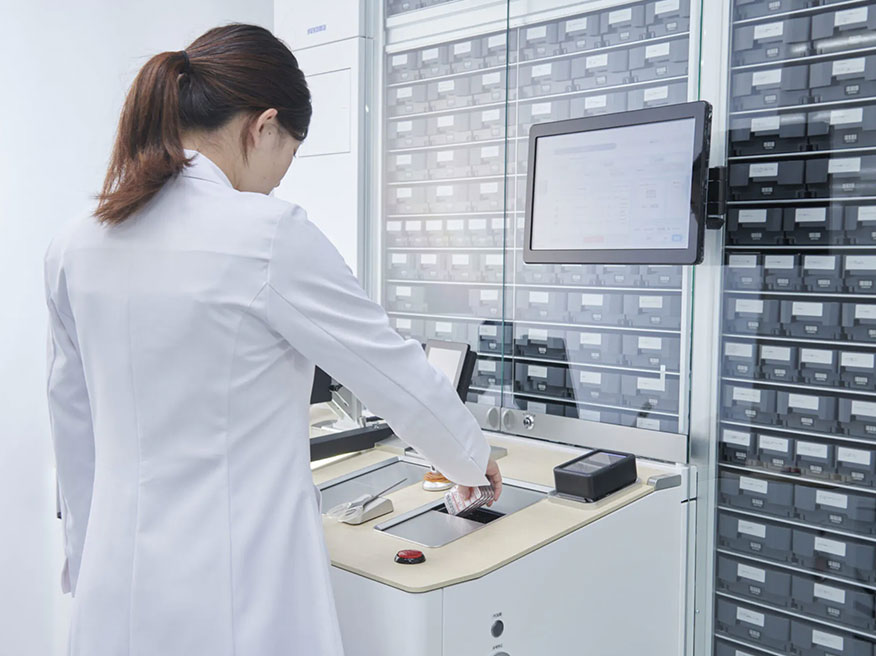

Accurate picking, right where you're standing
Once an order is issued, the medication tray reaches you in about 12 seconds at the fastest — accurate picking without moving around in front of the cabinet, even for non-pharmacists and first-time users.

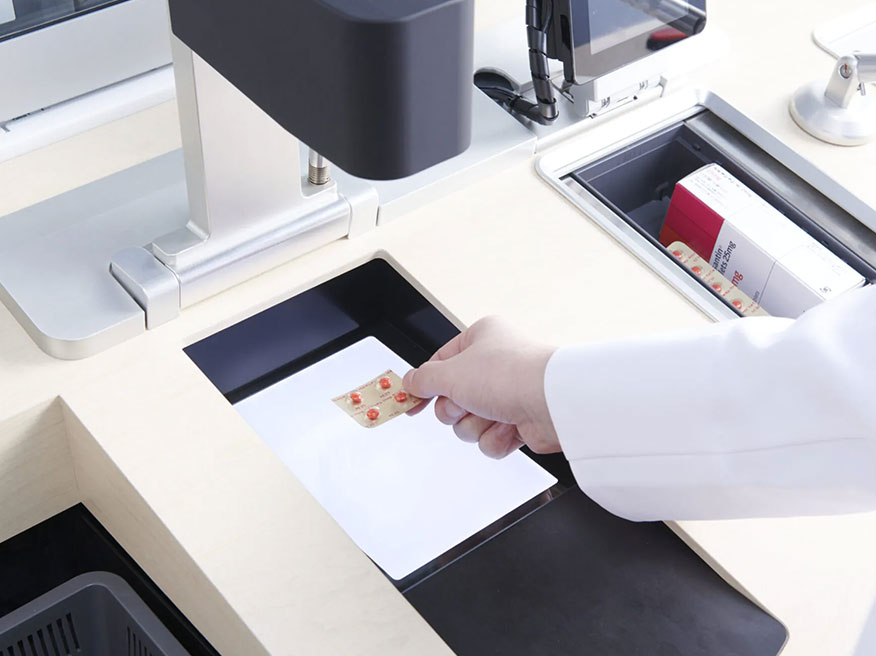

Reliable checking, every single pick
The Drug Station doesn't just pick efficiently — it keeps evidence of it. Each pick is weighed, and loose tablets are counted through image processing to back up the pick with data.
Model
YS-DS-3600-(L/R/W)
External Dimensions
3,580mm W x 1,800mm D x 2,285mm H
Weight (Main Unit)
Approx. 2,500kg, including medication trays
Number of Trays
Up to 1,752 (size S), 1,168 (size M), or 876 (size L)
Product Variations
YS-DS-2700, 3600 — each in L/R/W layouts
Power Supply
Main unit: AC200V (50/60Hz); Picking table: AC100V (50/60Hz)
Power Consumption
Main unit: 2.8kVA max; Picking table: 700VA max
Main Unit Color
White (black optional)
Backup Operation
Included laptop and battery-powered journal printer for manual picking during a power outage
Options

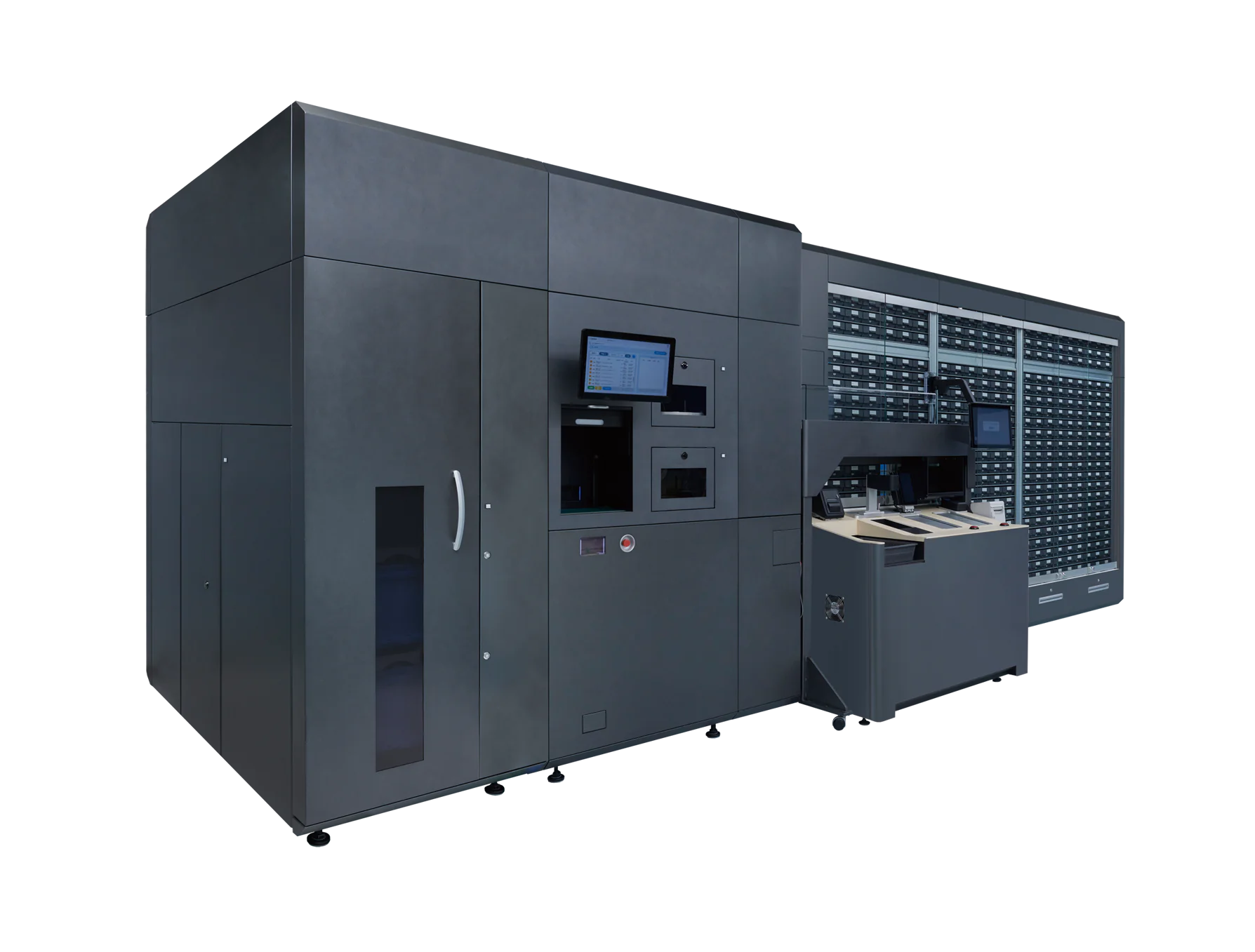

two-picking-table configuration, automatic medication loading/unloading device, automated incoming inventory unit
