Yuyama
Fully-Automatic Tablet Packaging Machine
Litrea III
Small pharmacies still need real automation. Many compliance packagers are sized for large operations. The Litrea III is built slim enough for a small to mid-size pharmacy without cutting corners on safety features.
Refilling the wrong canister happens more than you’d think. Barcode-and-RFID cross-checking on every refill catches a mismatch before the canister goes back in.
Hunting for a specific canister wastes time. RFID means every canister is recognized automatically wherever it’s placed — search by number, medication name, or barcode instead of scanning shelves by eye.
Some medications still need manual filling. The DTA tray and journal printer guide staff through exactly where and how much to place, so manual fills stay as accurate as automated ones.
Cutting tablets in half by hand is slow and inconsistent. The optional Half-Cutter automates it — cutting and packing in one step instead of a manual task prone to human error.
Patients on multiple daily doses mix up their sachets. The optional 4-color Penliner marks each sachet by dosing time automatically, making it easier for patients and caregivers to get the right dose at the right time.
Overview

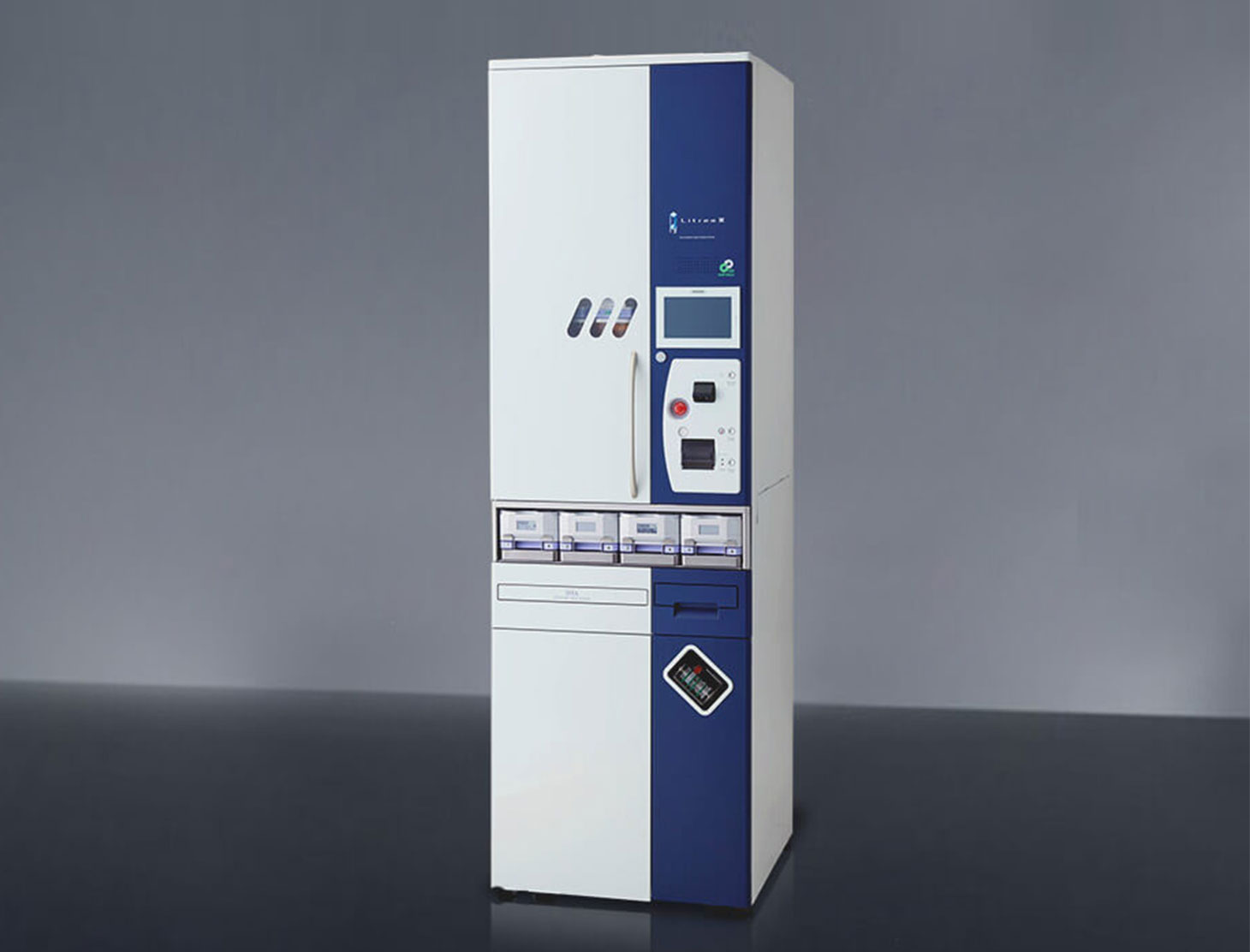

Litrea III series can improve your safety and accuracy by having many kinds of options.

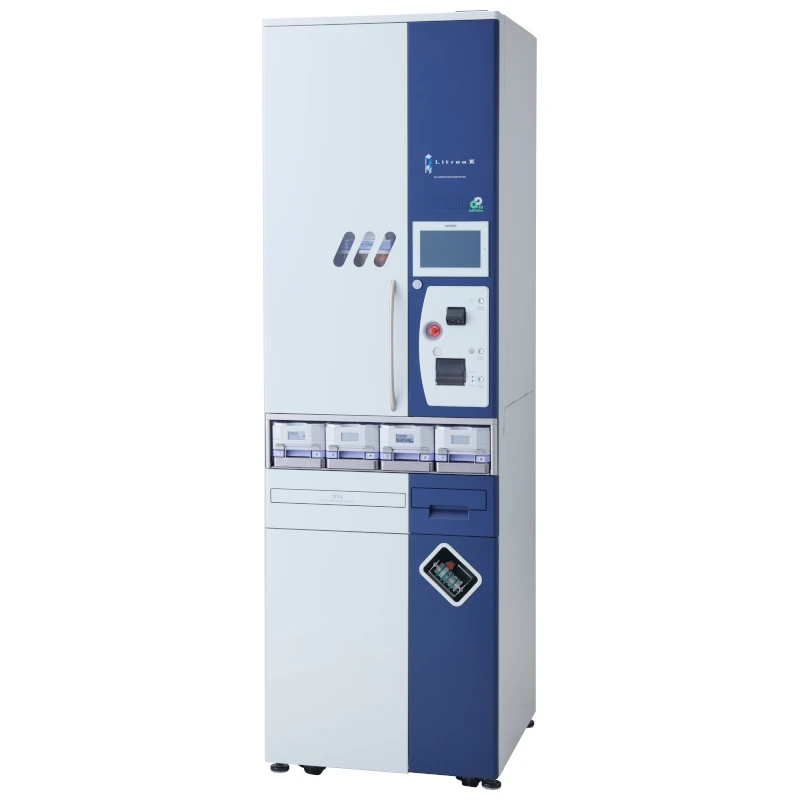

The Yuyama Litrea III 112/136 is a fully automatic compliance packaging machine built for small to mid-size pharmacies. It's slim enough to fit where larger machines can't, but still supports pharmacists with the same accuracy and safety features as Yuyama's bigger systems. Every one of its 112 or 136 canisters carries an RFID chip, so you can set a canister wherever's convenient — the machine finds it, not you. It packs at up to 60 sachets a minute and comes in three colors to fit your pharmacy's look. Source: Litrea III Product Catalog and yuyamarx.com/litrea-iii-112 (Yuyama U.S.A., Inc.)
Key Features

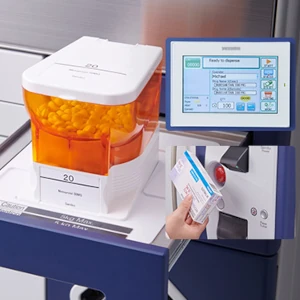

Verified refilling
Place a canister in the replenishment position and scan the medication barcode — the result shows right on the machine's screen, so a mis-fill gets caught before it happens.

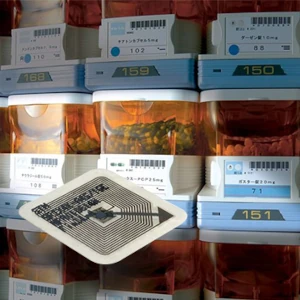

RFID Function
Every canister is automatically recognized, so it doesn't matter which slot you put it back in. Pull several out to refill at once without worrying about mixing them up.

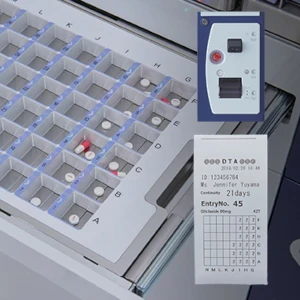

DTA Tray Function for Manual Fills
For medication that can't be automatically packed, the journal printer prints exactly where and how much to place on the tray, so manual filling stays accurate.

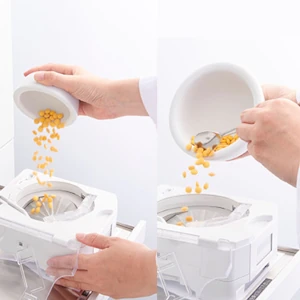

Universal Canister
One canister dispenses a range of medications that used to require filling by hand — freeing up time and taking manual-fill errors out of the equation.

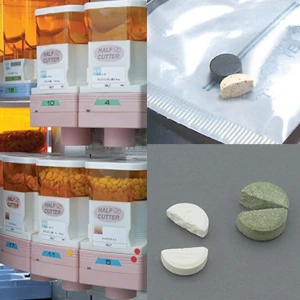

Half-Cutter
A dedicated canister automatically cuts tablets in half and packs them straight into the sachet, so staff don't have to cut tablets by hand.

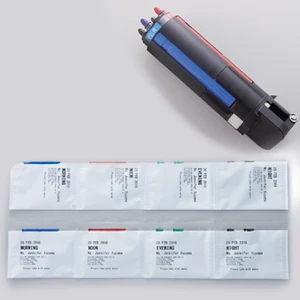

4-Color Penliner
Draws a color line on each sachet automatically, so patients and caregivers can tell dosing times apart at a glance — no more marking pouches by hand.
Number of Canisters
112 (M size)
Packing Speed
60 sachets/min
Sachet Size
60/70/76/80/90mm length x 70mm width
Tablet Manual Filling
48 sachets per DTA tray batch
Dimensions
610mm W x 627mm D x 1,979mm H (24 x 25 x 78 in)
Weight
Approx. 268kg (591 lbs); +12kg/17kg for UC2/UC4
Available Colors
Navy blue, wine red, mint green
Tablet Detection
Photoelectric sensor
Tablet Distribution
Centre falling
Sachet Print
Free size font, free layout, horizontal/vertical, 4-color option
Sachet Material
Cellophane and polyester, double-folded
Canister Identification
RFID chip per canister
Canister Searching
By canister number, medication name, or barcode
Voice Message
Error and warning message
Power Consumption
860VA (max)
Power Supply
AC 120/220/230/240V ±10V, 50/60Hz
Options
Automatic 4-color Penliner, Universal Canister (2 or 4), Half-Cut Canister (2, 4, 6, or 8)
Download Brochure
Detailed information. Clear specifications.
Get the complete product overview, including technical specifications, key features, and implementation details. Designed to help your team evaluate with confidence.
