Fully-Automatic Tablet Packaging Machine
Mindose
Full automation is out of reach for a start-up pharmacy. MINDOSE is built as a low-cost entry point, so a new or small pharmacy can offer compliance packaging without the price tag of a full-size system.
There’s no floor space for another machine. At under 0.4 square meters, MINDOSE fits into a pharmacy that genuinely doesn’t have room for a larger unit.
An existing automation setup needs backup capacity. MINDOSE works as a cost-effective spare, so a busy period or a machine down for maintenance doesn’t stop your packaging workflow.
Manual dispensing risks the wrong medication going in the wrong pouch. 2D barcode scanning opens only the correct dispenser, and the optional Universal Cassette automates what used to be a manual, error-prone step.
Patients on multiple daily doses lose track of which pouch is which. The optional Pen-Liner marks each pouch by administration time automatically, so patients can tell doses apart without reading the label closely.
Hopper cleaning is time-consuming. A detachable hopper turns a task that could take hours into one that takes minutes.
Overview

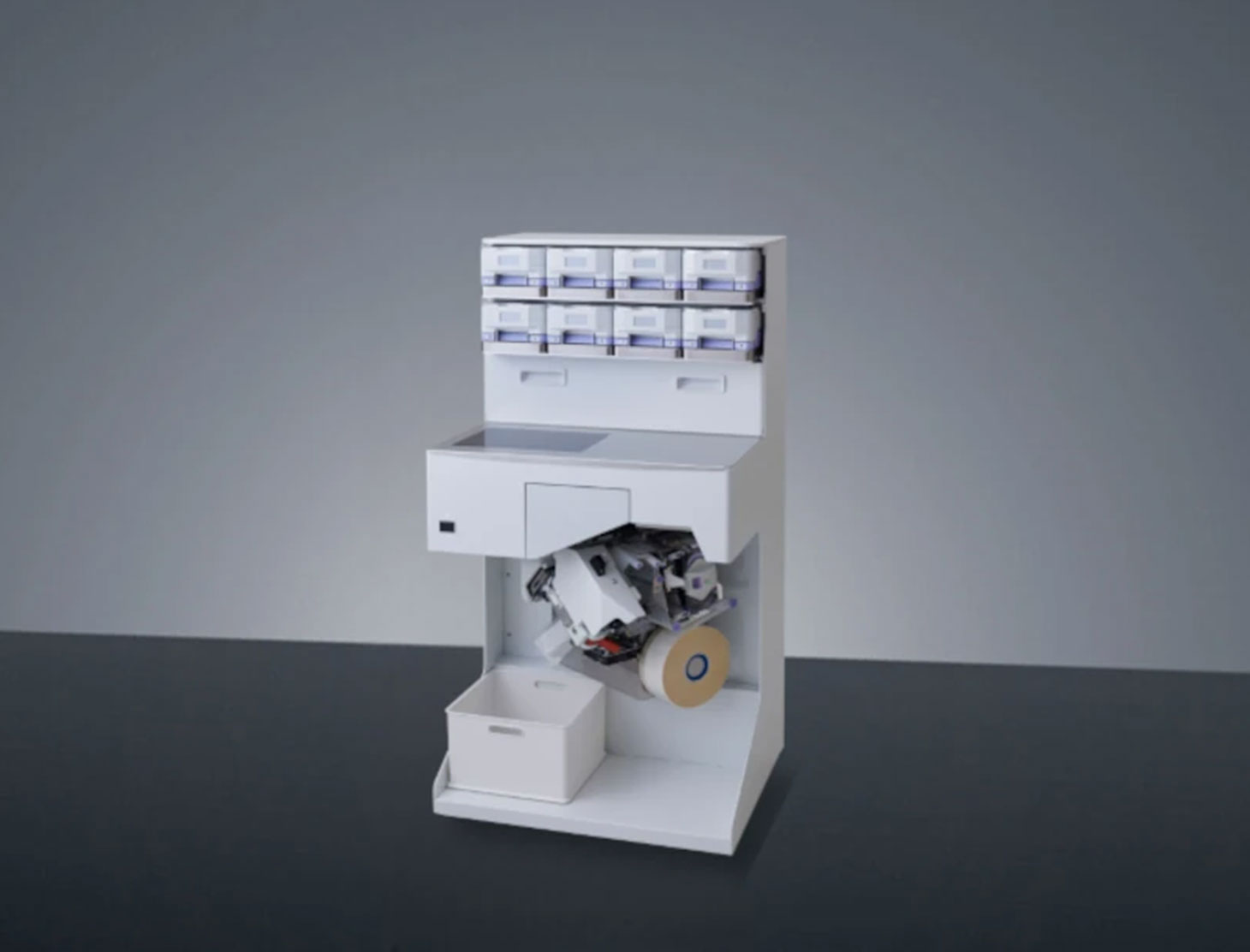

World Premier of MINDOSE Bringing Independent Pharmacies a low cost solution with quality features.

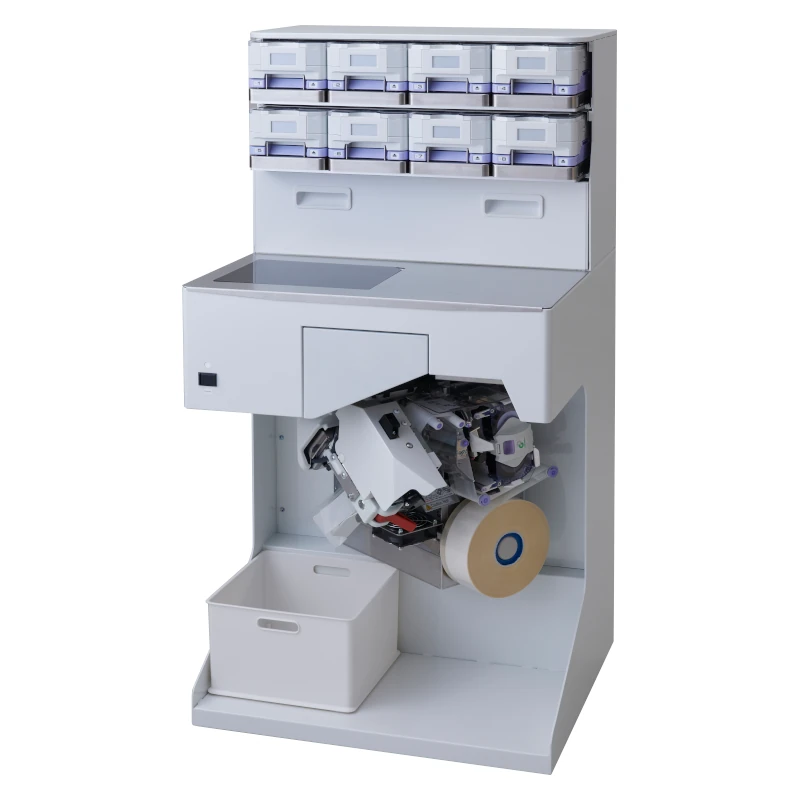

The Yuyama MINDOSE is a semi-automatic compliance packaging machine that fits in under 0.4 square meters of floor space — small enough for a start-up pharmacy to offer compliance packaging for the first time. It carries the same core features you'd find in Yuyama's larger systems, like Proud NEO and Litrea III: up to 8 Universal Cassettes, a Pen Liner option, and a DTA LED Guide. It also works well as a low-cost spare for an existing automation setup. Source: MINDOSE Product Catalog and yuyamarx.com/mindose (Yuyama U.S.A., Inc.)
Key Features
Compact Semi-automatic compliance packaging machine released
By rethinking the cassette design, MINDOSE fits real compliance-packaging capability into a machine just 23.6" wide and as short as 51" tall (UC8 model) — small enough for a pharmacy just getting started.

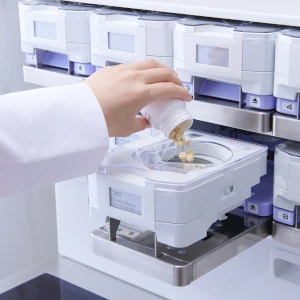

Universal Cassette
Register a cassette per patient: select the patient, scan the barcode, the cassette releases so you can add medication, expiration date, and lot number — that's the whole process.

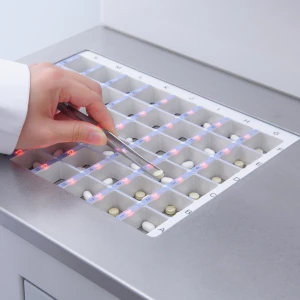

DTA LED Guide
For medication that doesn't fit in a Universal Cassette, the LED tray lights up exactly which cell needs filling, so technicians place pills correctly without second-guessing.

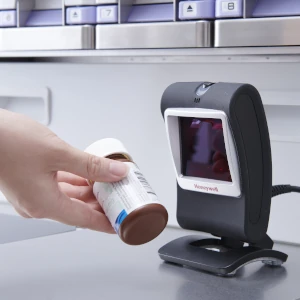

2D barcode identification
Scan the barcode and the correct dispenser opens — nothing else. The barcode also carries the lot number and expiration date, so there's no extra data entry.

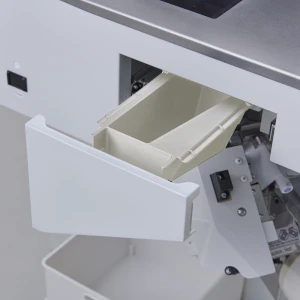

Detachable hopper
Pull the hopper out and clean it in minutes instead of hours, keeping cross-contamination risk low without being time-consuming.

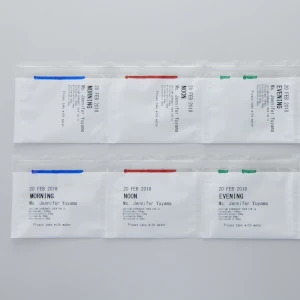

Pen-Liner
Adds a color line to each pouch by administration time, so patients can tell their doses apart at a glance.
Footprint
Less than 0.4 square meters
Dispensing Speed
Up to 60 pouches/minute
Dimensions
600mm W x 550mm D x 890mm H (base); 1,180mm H with UC4; 1,295mm H with UC8
Weight
Approx. 100kg
Pouch Size
Width 60/70/76/80/90mm x Height 70mm
Manual Fill Support
DTA LED Guide tray, 48 cells
Power Supply
AC 100-240V, 50/60Hz
Power Consumption
Max 850VA; max 1,200VA with UC8
Verification Method
2D barcode scanning; encodes lot number and expiration date
Maintenance
Detachable hopper for quick cleaning
Options
Universal Cassette (0/4/8), Pen Liner
