Yuyama
Fully-Automatic Tablet Packaging Machine
PROUD NEO
Manual dispensing invites human error. Safety research shows that close-call incidents far outnumber serious ones — which is exactly why they matter. Automatic dispensing with Universal Cassettes removes manual filling from the process instead of just hoping staff don’t make a mistake.
Spare cassettes sit unused, but you bought them anyway. Some pharmacies end up with 70-80% of their cassettes as spares for medications that change shape or get swapped out. Variable Cassettes let you recalibrate on-site instead of ordering (and stocking) a replacement every time.
A cassette in the wrong slot can mean the wrong medication. Every cassette carries an RFID chip that’s recognized automatically, so an incorrect cassette position doesn’t turn into an incorrect dispense.
Replenishing cassettes is a common point of mistakes. Barcode verification on refill, plus the optional lid-lock function, means a cassette only opens after the medication is confirmed correct.
Long-term care patients need pouches sorted by dosing time or location. Marking pouches by hand costs staff time. The optional 4-color Penliner draws the line automatically, cutting a 50-prescription day’s marking time from roughly 1 hour 40 minutes down to zero.
Hard-to-reach mechanisms make cleaning a chore. A 36° opening sash and a hopper you can pull out and rinse with water mean routine maintenance doesn’t require taking the machine apart.
Overview

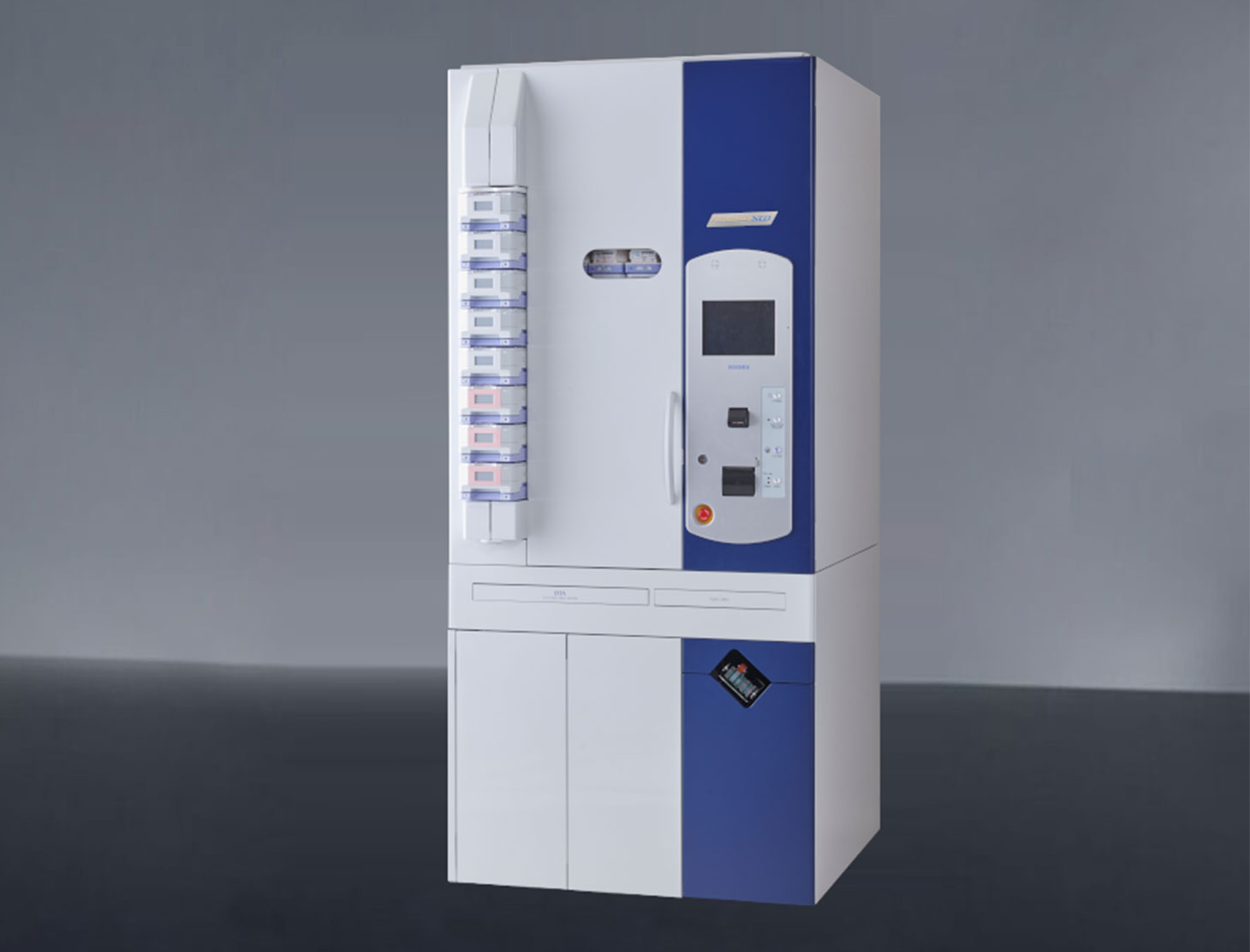

The Proud NEO 266/304 offers many options and it will support your business more efficiently and improve the quality of jobs.

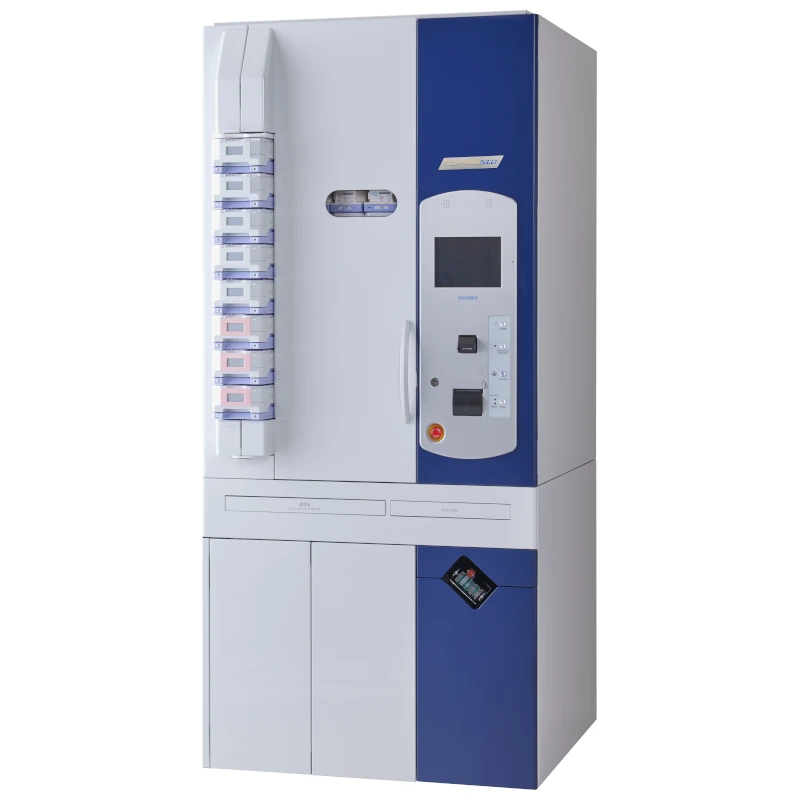

The Yuyama Proud NEO 266/304/400 is a fully automatic compliance packaging machine built for mid-to-large healthcare sites. It dispenses and pouches medications at up to 60 pouches per minute, holding 266, 304 or 400 tablet cassettes. Every cassette is RFID-tagged and barcode-verified, so an incorrect cassette position never results in an incorrect dispense. With optional Variable Cassettes, Universal Cassettes, and a lid-lock function, Proud NEO is built to take manual dispensing — and the human error that comes with it — out of your workflow. Source: Proud NEO Product Catalog and yuyamarx.com/proud-neo266-304 (Yuyama U.S.A., Inc.)
Key Features
Variable Cassette
Recalibrate a cassette yourself when a medication's shape or size changes, instead of ordering a new one every time — saving the time and cost of constantly reordering cassettes.

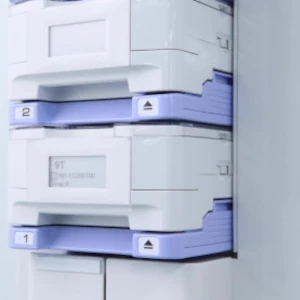

Universal Cassette
One cassette dispenses a range of medications that used to require manual filling, freeing up pharmacist time and improving dispensing accuracy.

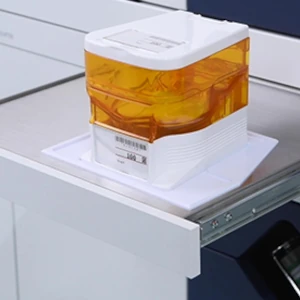

Lid Lock Function
Each cassette lid stays locked until a barcode scan verifies the medication, then releases so staff can replenish it safely.

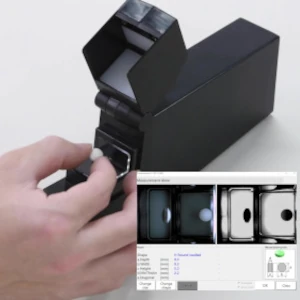

Tablet Measurement Camera
Instead of measuring drug dimensions by hand for cassette calibration, place the tablet on the camera unit and get accurate size data with one button press.

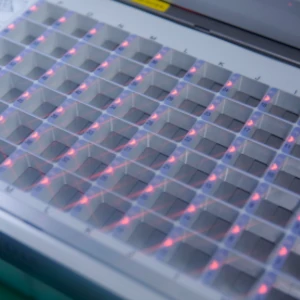

DTA LED Guide
LED lights show exactly where to place each medication during manual filling, so staff can stay accurate without losing concentration on a long, repetitive task.

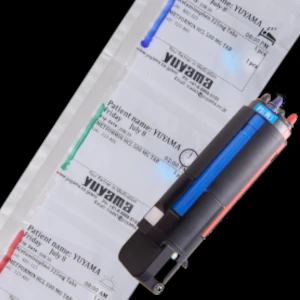

Penliner
Automatically draws a color line on each pouch so staff and patients can tell dosing times or facilities apart at a glance — without hand-marking pouches.
Number of Cassettes
266 or 304 tablet cassettes
Dispensing Speed
Up to 60 pouches/minute
Dimensions (without UC)
890mm W x 930mm D x 1,998mm H
Dimensions (with UC)
890mm W x 1,030mm D x 1,998mm H
Weight
Approx. 580kg (1,278 lbs)
Pouch Size
Width 60/70/76/80/90mm x Height 70mm
Tablet Adapter (DTA)
63 pouches per batch, up to 999 pouches
Options
Universal Cassette (0/4/8), Half Tablet UC (0-3), Variable Cassette, 4-color Pen Liner, Half Tablet Cassette (0/2/4/6/8), Lid Lock Cassette
Power Consumption
800VA (max)
Power Supply
AC100V ±10% (50/60Hz) or AC220V ±10% (50/60Hz)
Cassette Recognition
RFID chip per cassette; barcode-verified on refill
Safety Certification
Designed to meet RoHS, CE marking, and MET/MET-C international standards
