Yuyama

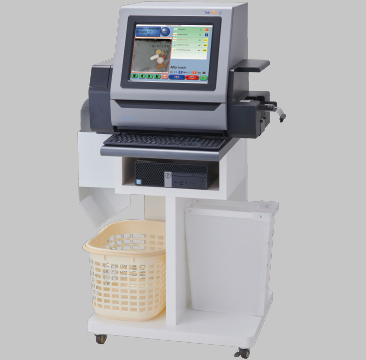

Packed-Tablet Inspection Machine
TabSight-S
Manual visual inspection is slow and tiring. Checking packaged tablets by eye, package after package, wears staff down over a long shift. TabSight-S checks a package in about 1 second at 99.5%+ counting accuracy.
Transparent and quarter tablets are easy to miss by eye. TabSight-S identifies both, catching what a tired or rushed visual check might not.
Look-alike tablets are hard to tell apart. TabSight-S judges every package on quantity, color, and shape together — not just a count — so a similar-looking substitute gets flagged.
Long, continuous prescriptions are a hassle to batch-check. TabSight-S automatically detects where one prescription ends and the next begins, so staff don’t have to separate packages by hand before inspecting.
Finding a flagged package again wastes time. The built-in NG-package marking unit marks failed packages directly, so re-checking or re-packaging doesn’t mean searching through a whole batch.
One inspector can become a bottleneck. With the optional remote inspection setup, a second person can review results from another monitor using the package barcode, instead of everything funneling through one station.
Overview

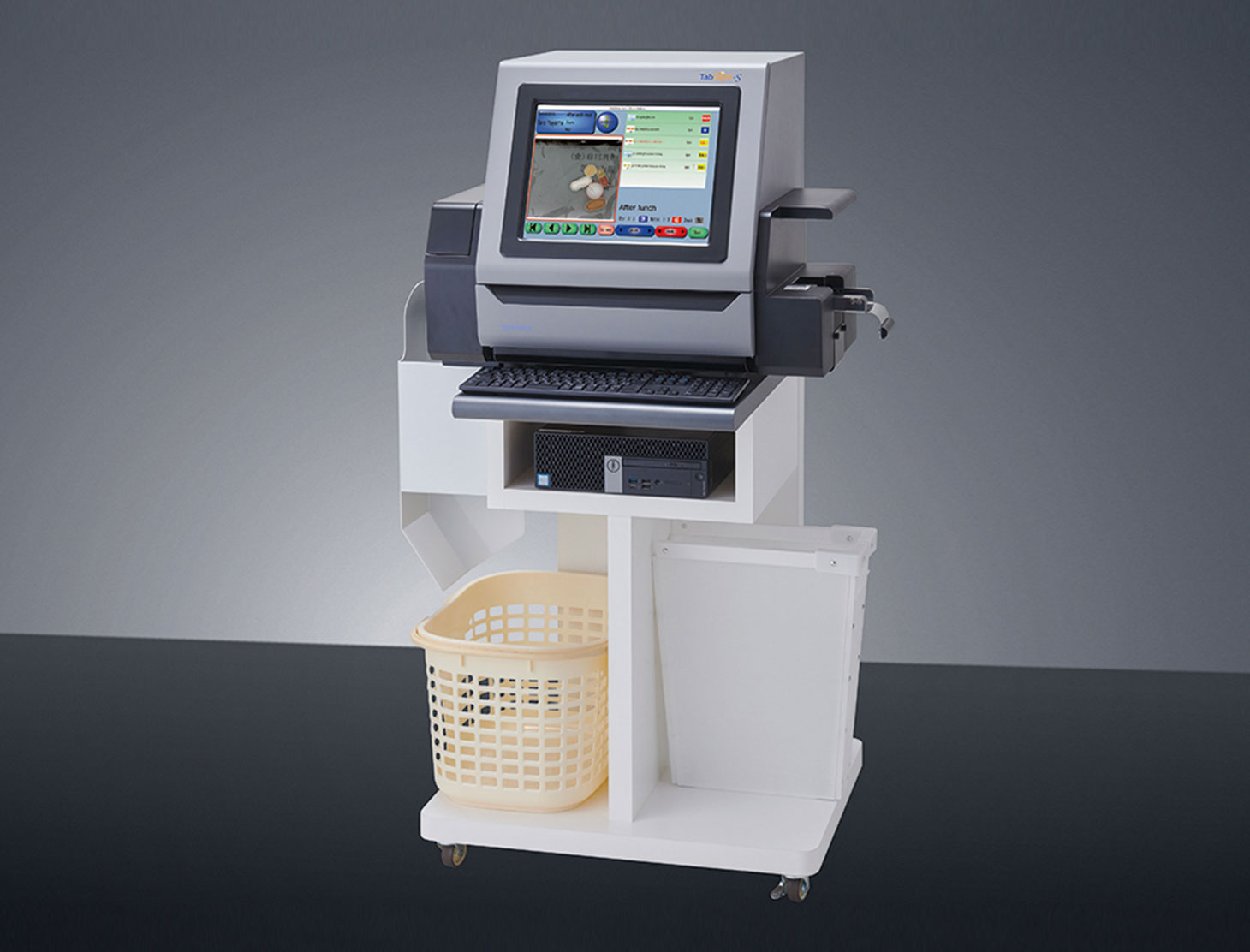

Check for quantity,color,shape and even the possible contamination in your multi-dose packs. Yuyama provides the high accuracy for your reassurance and that of your patients.
The Yuyama TabSight-S checks packaged tablets after they come out of a packaging machine, verifying quantity, color, and shape in about 1 second per package. Its camera and image-recognition system reach 99.5%+ accuracy on tablet count and 97%+ on color and shape — including transparent tablets and quarter tablets that older systems couldn't see. It connects directly to Yuyama's tablet packaging machines, so inspection fits into your existing dispensing workflow instead of adding a separate step. Source: TabSight-S Product Catalog and yuyama.co.jp/en/product/tabsight-s (YUYAMA MANUFACTURING CO., LTD.)
Key Features

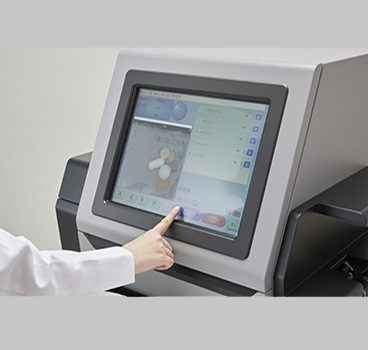

Large Screen Visual Check
High quality picture shows actual contents. Users can check the inside of each pouches directly from the screen, while touch functionality provides smooth operation.

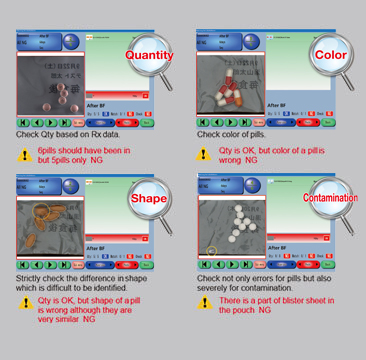

Pouch Results Verification
Users can check all the pouches immediately. TabSight-S shows the number of inaccurate/incorrect pouches and suspicious pouches. Yuyama supports our customers in safeguarding against human error and mis-administration to your patient.
Checking 1 pouch per second. High-speed checking is available
It realizes the safety and high-speed pouch checking in 1 second for quantities, color, and shape※. ※It is available when each pouch includes 5 kinds and 5 tablets, high-speed mode, and vivid photo setting turned off.
Transparent tablets or 1/4
TabSight-S can identify transparent tablets or 1/4 tablets. As the number of drug types recognized by TabSight-S increases, users can check the pouches more easily and speedily.

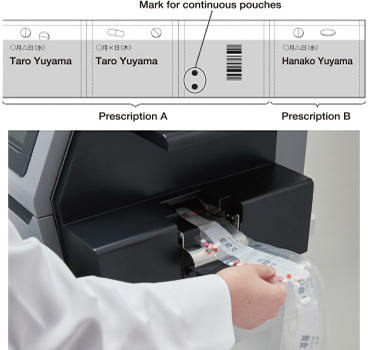

Stable operation, free from stress
Even when pouches with different prescriptions connected to each other are loaded, TabSight-S can check them without user intervention, because it can automatically identify perforations between pouches. Tablets packed in pouches can be collectively checked.

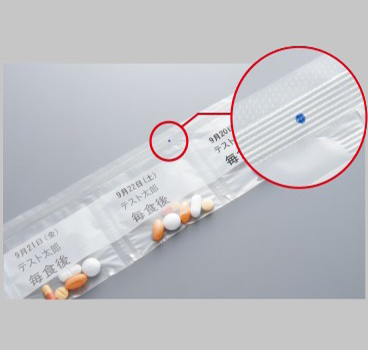

Caution Marker Unit
Yuyama offers a helpful function for your task in the form of the Caution Marker Unit. This function is able to make a mark on any pouch deemed inaccurate/incorrect. Users need only check the pouches with marks, increasing patient safety.

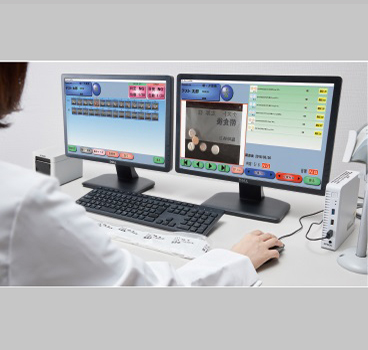

Remote check is also available.
Users can check pouch images stored in other rooms using a monitor. Users can load the pouches into TabSight-S in the dispensing room and then check in the examination room. By scanning the barcode on the last pouch, pouch images will be displayed on the monitor for check.
Verification Contents
Quantity, color/tone, and shape check per package; flags foreign objects (e.g. PTP foil)
Evaluation Speed
High-speed: ~1.0 sec/package; standard: ~1.2 sec/package (5 tablets, 5 types per package)
Recognition Accuracy
99.5%+ tablet count, 97%+ color and shape
Max Tablets per Package
25 tablets, up to 25 different types (must not overlap; ≤30-40% of package volume)
Verification-Compatible Tablets
3mm x 3mm or larger; supports half/quarter tablets and transparent medications (not powders)
External Dimensions
Main unit: 810mm W x 510mm D x 515mm H; on stand: 845mm W x 645mm D x 1,355mm H
Weight
Main unit: approx. 60kg; dedicated stand: approx. 25kg
Power Supply
AC220V (50/60Hz); requires two power outlets
Power Consumption
300VA (max)
Data Retention
Verification data stored for up to 100 days
Standard Equipment
Journal printer, built-in barcode reader, NG-package marking unit
Package Input Capacity
1-999 packages per batch (barcode-printed package required after the last one)
Compatible Package Paper
Dedicated TabSight cellophane-polyester 70W (double-folded), 60-90mm wide
Compatible Printing Ribbon
Black single-color ribbon
Compatible Packaging Machines
PROUD, Litrea
Options
Dedicated stand (recommended), storage box fixing stand, automatic winder, remote inspection function
