Semi-automatic vial filling machine
EV-54
Counting by hand takes too much staff time
One pharmacy filled 300 scripts a day and spent 12.7 hours of pharmacist time doing it manually. After adding the EV-54, it handled 42% of that volume (127 scripts) in seconds each — freeing up 5.2 labor hours a day for patient care.
Manual counts lead to mistakes
Rushing to count pills by hand raises the risk of errors. The EV-54 counts at 99.999% accuracy and can fill 100+ scripts an hour, so speed doesn’t cost you accuracy.
You don’t have room for big machines
The EV-54 fits in under 5 square feet, and you can add units one at a time as your pharmacy grows — no need to buy a bigger system upfront.
Overview

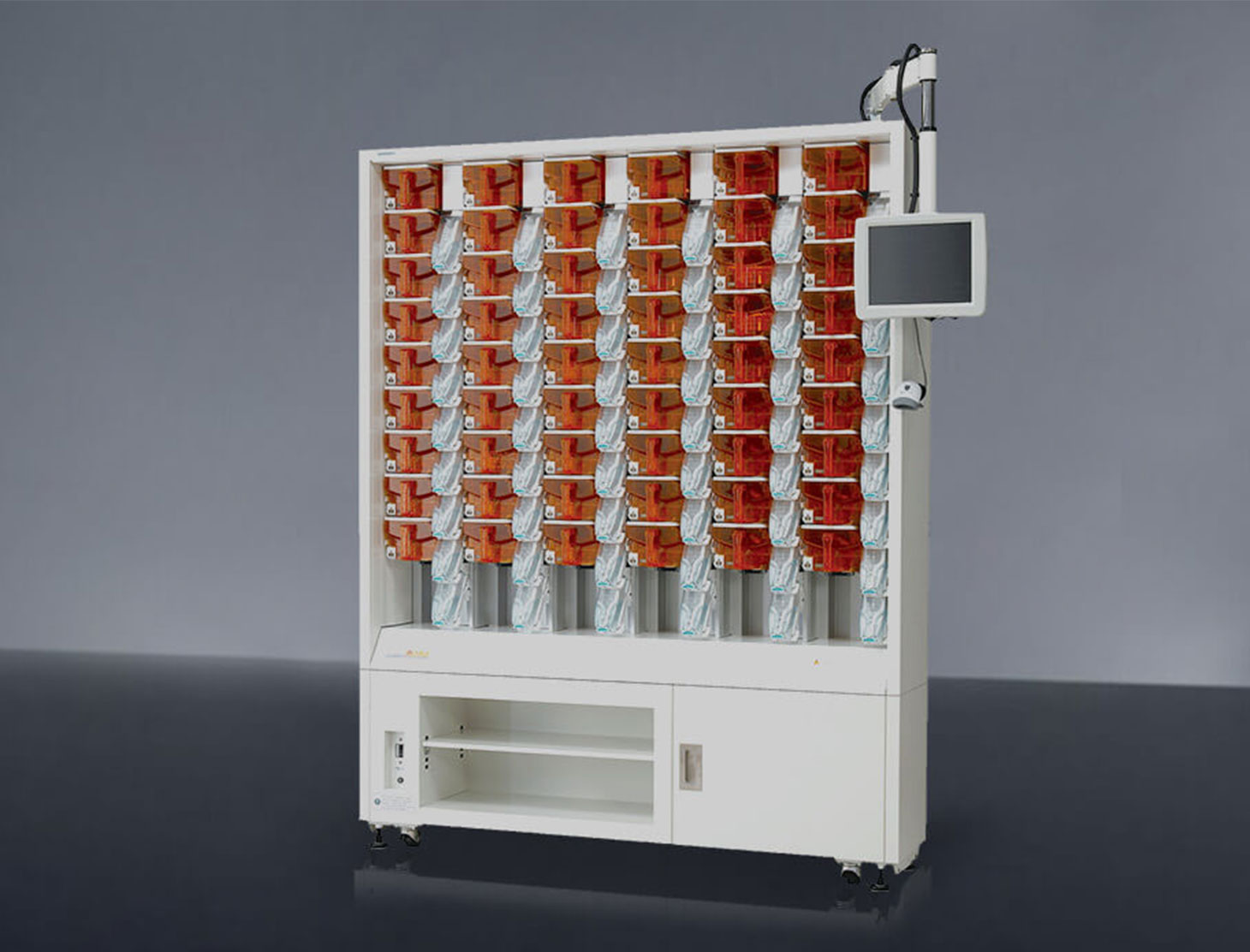

Th EV-54 is accurate, easy-to-use, fast, secure and compact
The Yuyama EV-54 is a semi-automatic vial-filling machine designed for retail and hospital pharmacies. It holds 54 factory-calibrated 900cc canisters and fills over 100 prescriptions per hour, with counting accuracy greater than 99.999%. The EV-54 is compact, simple to operate, and built to reduce manual counting workload while keeping every dose secure and traceable — from canister to vial.
Key Features

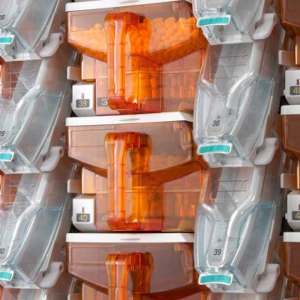

Locked until dispensed
Only staff with software access can open a cassette. Add barcode checks and direct fill, and every dose stays accounted for.

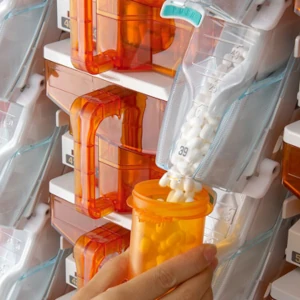

Direct fill, no cross-contamination
Pills go straight from cassette to vial — each drug only dispenses from its own slot, so nothing ever mixes. Works with virtually any vial type, and splits large prescriptions across up to 3 vials automatically.
Factory-Calibrated Canister Cassettes
Each cassette is individually calibrated by medication at the factory, delivering the highest accuracy in the industry. This significantly reduces the risk of cross-contamination, tablet miscounts, and calibration errors. The 900cc cassettes hold an entire bottle of medication, reducing refill frequency and simplifying inventory management.
Cassette Capacity
54 factory-calibrated 900cc cassettes
Vial Compatibility
Compatible with all vial types and sizes; splits large scripts across up to 3 vials
Throughput
Over 100 prescriptions per hour (average 1 script per 5 seconds)
Counting Accuracy
Greater than 99.999%
Dimensions
57"W x 12"D x 75"H
Footprint
Under 5 square feet per unit
Weight (Empty)
500 lbs
Expandability
Modular; expandable up to 5 units, placed side by side, back to back, or against a wall
Power Requirements
Standard 220V, 60Hz, 10A
Operating System
Microsoft Windows
Software Integration
Integrates with any existing pharmacy workflow platform
Safety Certification
MET Listed — meets Nationally Recognized Testing Laboratory (NRTL) safety standards
