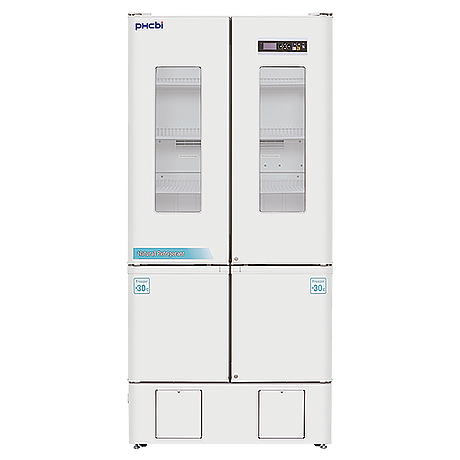

Pharmaceutical Refrigerators with Freezer – MPR-N650FH / MPR-N650FSH
Overview
Pharmaceutical Refrigerators with Freezer – MPR-N650FH / MPR-N650FSH
Providing a complete storage solution — refrigerator and freezer in one unit. The MPR-combine high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. Natural refrigerants minimise environmental impact for a sustainable storage solution.
Capacity
R=466/468, F=189
Dimensions (W x D x H)
890 x 715 x 1910
Temperature Control Range
Refrigerator: +2 to +14°C | Freezer: -30 to +20°C
Controller
Microprocessor with non-volatile memory
Display
Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor
Thermistor
Cooling Method
Refrigerator: Fan forced air circulation | Freezer: Direct cooling
Defrost Method
Refrigerator: Cyclical defrost | Freezer: Manual
Refrigerant
HC refrigerant
Insulation Material
Rigid polyurethane foam (cyclopentane foam)
Exterior Material
Color steel plate (PCM, Color: Healthcare White)
Interior Material
Refrigerator: Vacuum molding (ABS resin) (refrigerator) | Freezer: Painted Steel
Outer Doors
4 (glass window [2(FH)/0(FSH])
Outer Door Lock
Y
Shelves
Refrigerator: Coated steel wires (3) | Freezer: Coated steel wires (2) Drawers
Max. Load - Per Shelf/Drawer
Refrigerator: 25 kg | Freezer: 15 kg
Access Port
2 (1 for Refrigerator, 1 for Freezer)
Interior Light
LED
